Analysying Insomnia - Bootkit that infects kernel with backdoor

03/03/2025 - Estimated reading time: 14 minutes

Introduction

As I was sick for about 5 days so I decided to make something interesting - a boot service bootkit. As a fun challenge, I also promised myself that bootkit will have zero assembly, and I successfully did it. The result? it was tiny and quite complex. This blog post we’ll be discussing how it works. Lets dive deep into it.

Bootkit Analysis

Here, we can see a visual graph of how the infection will works at a basic level, it would be really helpful to understand whats going on next.

UefiMain

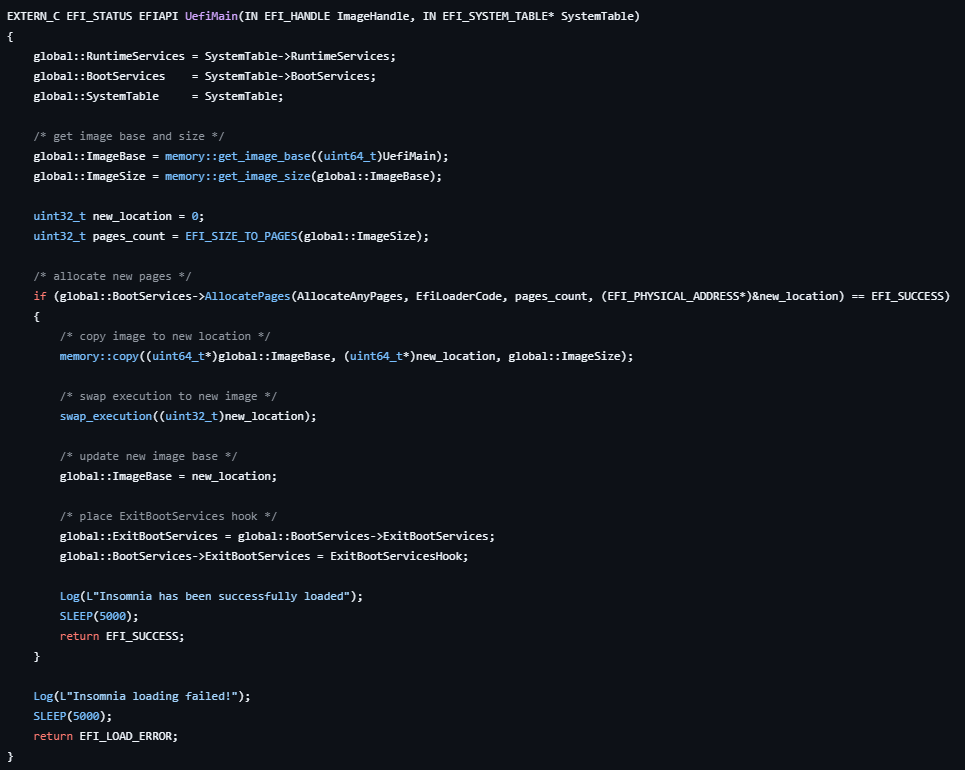

In UefiMain we are resolving the image base and size. After that we are allocating new pages needed to hold our image.

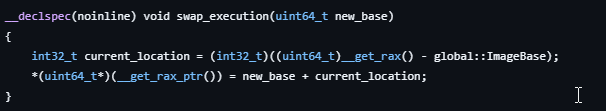

After memory allocation succeed, we are switching the execution to the new base by this function. We need to do such a thing because for some reason if we will just specify the driver type in compilation as Boot Service Driver, it will allocate the runtime pages for it anyway. So we need to specify the driver type as EFI Application and allocate pages by ourself. The last thing the main doing is placing a hook on ExitBootServices.

ExitBootServicesHook

ExitBootServicesHook starts by getting winload.efi base using __get_rax() from rax register (return address). Next it pattern-scans a function called BlpArchSwitchContext locate the context‑switch routine and also it tries to pattern scan for the reference of OslLoaderBlock to extract its absolute address.

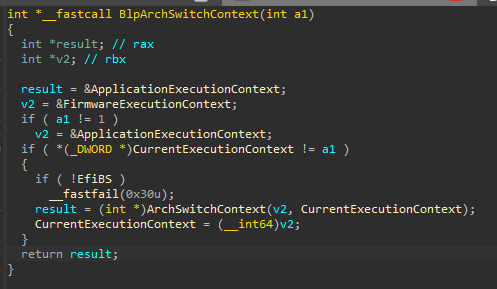

The task of BlpArchSwitchContext is to switch between Firmware (Physical Memory) and Application (Virtual Memory) execution contexts. It internaly switches the descriptor table context but we do not care about that.

Why do we need this function? We are now in ExitBootServices which is the last stage before the system will pass its execution to the kernel. We can’t hook any function that will be after the ExitBootServices because our memory will be unloaded after ExitBootServices finishes its execution. So the actual point of using it is to access virtual memory, we need to switch out context to the Application.

I think we can just translate the addresses from virtual to physical using MmArchTranslateVirtualAddress (just example) and then access them without need in the context switch.

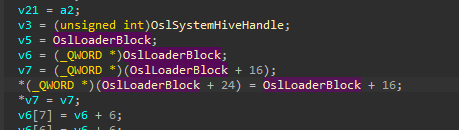

OslLoaderBlock is a structure that holds information about system and system boot drivers during boot. These drivers need to start before the others as they are major important drivers for system. Without them, the system itself can’t launch. Some examples of such drivers are ntfs.sys, disk.sys, acpi.sys, tpm.sys etc. The kernel itself also there. By the way, they are already loaded in the memory but not started yet. We need this structure to get the kernel virtual address.

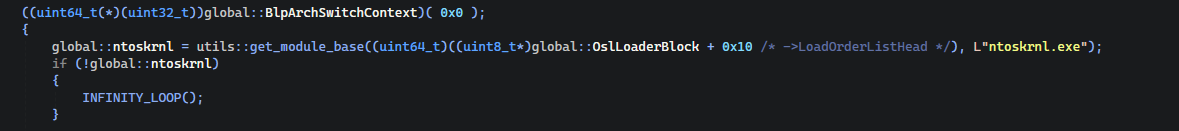

Here we are switching out context to Application so we can access the virtual addresses and gets the OS kernel’s base.

Infecting OS Kernel

I was confused about what way of infection should I choose for this project. Initially, I was thinking about just overwriting the code of some function in the .text section but it’s a really common method. When a method is popular enough, it gets obviously detected by AV/EDRs. This method is detected fairly easily by AV/EDRs by just comparing the hashes of the .text section from the file on disk with the section in runtime.

Finally, I landed on abusing the padding of the functions.

Abusing the Padding of Sections

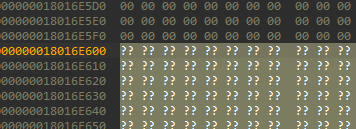

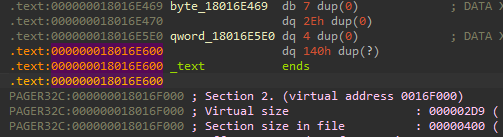

As you can see here, we have the end of a .text section that was on .text:000000018016E600. If you observe the line above, we see that it magically jumps to the address PAGER32C:000000018016F000 of the next section. It’s called a padding. The sections and image itself need to be page aligned, that means it should be dividing by 0x1000. We can abuse that uninitialized padding which is easily large enough (hundreds of bytes) to hold our payload.

We need only something like 40 bytes for our future payload, so in our case this small chunk of memory is pretty large for us. So it will be ideal to infect kernel here with our payload.

Well some nerd will probably say that OS kernel doesn’t have RWX regions. We need it for our payload to be executed but also to be undetected from comparing with disk, so this section can be overwritten in runtime and it would be illogical comparing that section with disk.

You will be right but the thing is that some drivers change their sections with just the Read permissions itself, even ntoskrnl does it. The INIT section that only have the R-E permissions is overwritten with some dummy data after kernel initialization. I’m not sure why this happens but I have noticed it a while ago. I think it could be because of the PatchGuard initialization. Memory regions with PatchGuard are obfuscated, maybe it can cause that. So you can even just overwrite this entire section and this will be not suspicious.

TL;dr; comparing with disk all R-E sections can lead to false positives.

Remember that you can always find a driver with RWX section, set it startup as Boot Start and can you also overwrite its RWX section without any issues. Also worth noting that we can even change other drivers ->Charecteristic field in runtime to make the section any permission we want, or maybe overwrite file on disk itself after the driver is loaded in memory. That’s all just a reflection for those who want to make something better.

We talked about how we will infect the kernel, but the main question is what will we infect the kernel with? Just recently, I saw a project made by ekknod which is called SubGetVariable that makes it possible to execute ANY kernel functions from usermode. I have linked the project at the end of this post, check it out! The author used some shellcode with which they’re overwriting the GetVariable function. I remember that I promised myself to not use any assembly in the bootkit, I also need to figure out a way in which we can do that without any assembly. The basic kernel mode execution payload is looks like this:

If we get to this function from usermode, we can execute any desired functions from kernel. I’m not sure but I think that we can even use the JMP instruction in assembly with the address of function and it will also work. With JMP approach, our payload will be just like 4 bytes in size? Pretty tiny backdoor though. But as I can’t use assembly here, we will have to leave it as it is.

So the next thing if we know our payload, its how we will get the usermode to execute it? We can overwrite some NT function with jmp instruction to it but as I clearly described above that we are not interested in overwriting .text section. And I have decided to make some other interesting thing and it’s SSDT Hooking.

SSDT Hooking

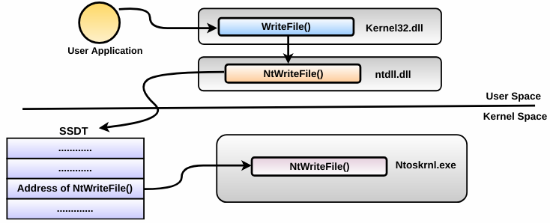

Just so you know, I will not go into depth on how System Service Dispatch Table works but I will get you to the point. When you make a call for example to NtWriteFile from ntdll.dll. In ntdll, it makes a syscall with specific id of a function to - switch the execution to the kernel and to execute the kernel function that you have specified before. All the kernel functions that can be executed from usermode have their own syscall id. How does a syscall know the address of each kernel function? Now SSDT comes in game. SSDT is a table located in the ntoskrnl called KeServiceDescriptorTable, it is not exported in x64 modern systems so we need to find it somehow ourself.

KeServiceDescriptorTable looks like this, it has four fields inside but we are interested in pointer to the ServiceTable as its the table with addresses to the kernel routines.

But the thing is as we are dealing with it before the OS kernel is even executed, KeServiceDescriptorTable is zero i.e. it is not initialized. But as we saw before, the KiServiceTable is a pointer, so ServiceTable is held in some other variable in the kernel outside KeServiceDescriptorTable.

As we can see, SSDT table is only getting initialized in the KiInitSystem phrase.

In its initialization, it is copying a pointer from variable called KiServiceTable. That’s what we are looking for.

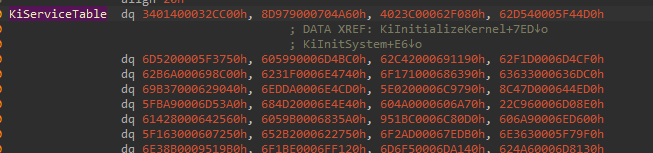

We can clearly see that it contains the relative addresses of all the kernel routines. But it’s not the end because the KiServiceTable is also not initialized yet.

To get an absolute kernel address from ServiceTable when the kernel is initialized, we need to do something like this:

$$ RoutineAbsoluteAddress = KiServiceTableAddress + (routineOffset > > > 4) $$

So somewhere in the kernel, it needs to be compacted or compressed.

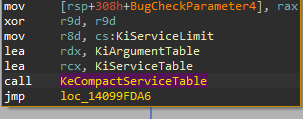

As we can see, on the second reference for KiServiceTable is in KiKernelInitialization and our table is passed to the KeCompactServiceTable function call.

pCurrentEntry = pKiServiceTable;
if ( numEntries )
{
  numEntriesRemaining = numEntries;
  do
  {
    *pCurrentEntry = ((imageBase + *pCurrentEntry - (unsigned int)pKiServiceTable ) << 4) | (*pNumArguments >> 2);
    *pNumArguments++;
    pCurrentEntry++;
    numEntriesRemaining--;
  }
  while ( numEntriesRemaining );
}

KeCompactServiceTable basically looks like this, its work is to rebuild the relative addresses stored in the KiServiceTable and compact them.

As we are before the kernel initialization, KiServiceTable is storing raw relative addresses to the functions from the ntoskrnl base.

Basically to make a hook, we need to rewrite the RVA offset to our payload. Also PatchGuard will also not catch us as we are hooking SSDT even before it is gets initialized, so we are cool here.

Some nerd now will say that the SSDT hooking is detected since windows 7 and any AV/EDR will go crazy with it. But that’s not really the truth. If we will perfom an SSDT hook to the other driver, this will be detected and flagged. But we are perfoming a hook inside the same module (which is the ntoskrnl). To detect it, AV/EDRs need to calculate every absolute address in runtime and comparing it. But comparing it with what? With the addresses in the EAT? But here in syscalls, there are some functions that don’t have an EAT export so then what? The only true answer is will be calculating the absolute address from the file on disk and then calculate the absolute offsets from the runtime but like I said it is quite complex, the AV/EDR needs to make two different calculations but in that way it is possible to detect our hook. Anyways I don’t really think that any AV/EDR is doing that.

We also no need in infecting the kernel with anything, we can just make for example the NtUnloadKey2 syscall to execute MmCopyVirtualMemory by just changing the relative offset that will point to the other function.

So now we need to specify which syscall will perfom the hook. I decided to use NtShutdownSystem, why? Because it is likely will not be called often during runtime, and it is exported in EAT, so we don’t need to search it by AOB scan.

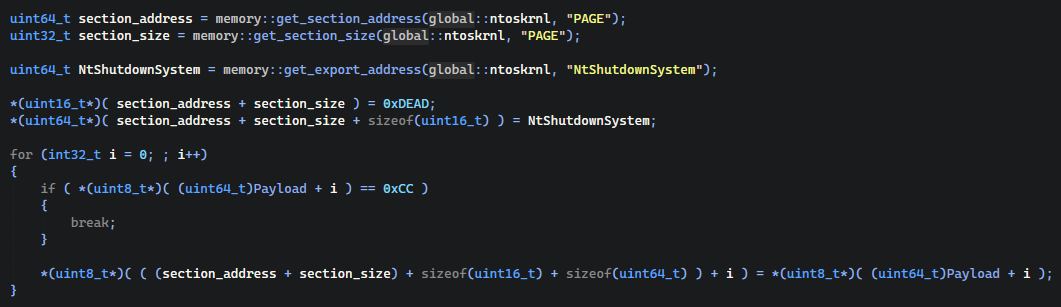

Here we are retrieving the PAGE section address and size. With it we will make padding abuse. Then we will fetch NtShutdownSystem export, we need it to save the original function functionality. Without it, we can’t even turn off our pc lol.

As we are copying our payload to the padding, we are not copying our .data section so we won’t be able access the global variables. We need find a way to save our original NtShutdownSystem address.

I decided to just copy it to the memory before the function with the signature 0xDEAD to identify the end. We will see later how it will be extracted in the payload function. As we are inside the ntoskrnl, we can just walk to its image base and gets function address from EAT but my solution is more universal.

Next as I said, we are copying our payload byte by byte to the padding, we are looking for function end, by 0xCC(INT 3), that is the indicator of the function padding (end) in binary.

Here we are trying to resolve the KiServiceTable. You might think that we can just use the pattern scan for reference, but the problem is that even on other Windows 10 22H2 builds, the pattern is different, so we will have to manually walk to it from the kernel entry point.

The manual walk looks like this:

$$ KiSystemStartup->KiInitializeKernel->KiServiceTable $$

Then when we have the KiServiceTable to not make the syscall id hardcoded, we can walk the table searching for the NtShutdownSystem’s relative offset, as we have function address from EAT, we can find its entry there. Then just change the relative offset in the entry to point to our payload.

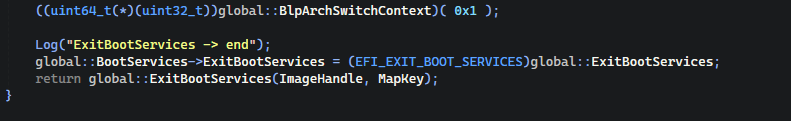

The end of the ExitBootServices is simple, we are just switching our context back to the Firmware, after that restoring our hook and returning the original ExitBootServices function. After the original ExitBootServices function finishes its execution, our driver will be automatically unloaded from memory.

Payload

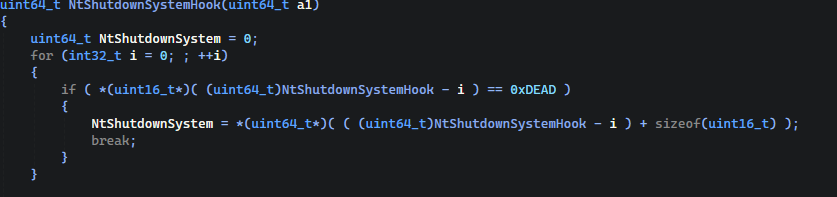

Will back to our payload, first we are going back in memory to get our saved NtShutdownSystem address. After that we will hit our 0xDEAD signature, then we know that we are in the right place and extracting the address.

And in the project SubGetVariable by ekknod, the author used very cool method of hiding the arguments by overwriting EntryPoint and ImageSize of the current image. So basically the calls to their hooked GetVariable function will look totally legitimate. We can even use some reserved entry in internal structures to store our data there. Anyway, I have started thinking about hiding the arguments on the stack.

Shadow Space

I'm not sure

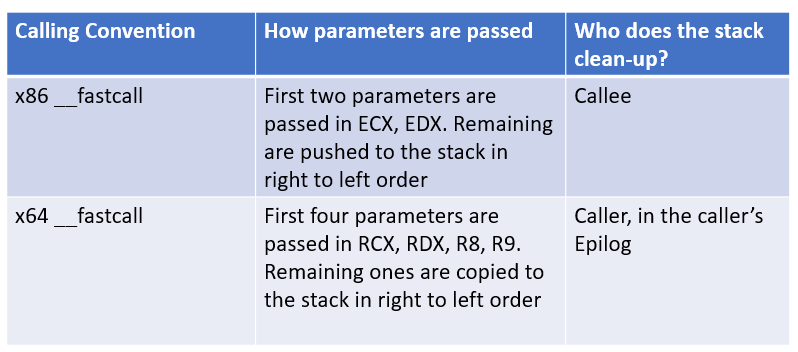

As you can see here, the default __fastcall calling convention that is used in Windows on x64 passing the first four arguments in the registers then the other one via stack. But it is also presaving the memory space called shadow space for these registers. So if the first four registers are not zero, meaning that shadow space is not used for presaving it and the shadow space is skipped. That the way that I have been thinking when coding the project but at the time of writing this post, I’m not really sure. I searched a lot via Google but its not really showing anything useful about how its going in syscalls, the only thing I know that it is passed in the KiSystemCall64 and if KVA enabled it goes to the KiSystemCall64Shadow. Then it makes a kernel stack and pass the registers to the memory. I have found that it gets arguments after pushing rax from stack and place them into registers. Anyways, as we are not passing the argument by the default registers instead storing them in the usermode stack, I think it will be confusing for any system that will try to monitor our call.

Syscall saves the usermode RSP in the GS cpu segment register. In the kernel, GS segment holds _KPCR structure.

struct _KPCR
{
    union
    {
        struct _NT_TIB NtTib;                                               //0x0
        struct
        {
            union _KGDTENTRY64* GdtBase;                                    //0x0
            struct _KTSS64* TssBase;                                        //0x8
            ULONGLONG UserRsp;                                              //0x10
};

As we can see in the UserRsp, we can get the usermode stack address. Also we can use the TrapFrame to get from there RSP and any other register that is passed from usermode.

Usermode

    ; allocate shadow space
    sub rsp, 32

    ; place signature
    mov WORD PTR [rsp + 30], 0DEADh

    ; store arg in shadow space
    mov QWORD PTR [rsp + 22], rcx

    ; moving first arg
    mov rcx, 1

    ; call
    call QWORD PTR NtShutdownSystem

    ; Restore stack
    add rsp, 32

    ret

Here is basic implementation in usermode, pretty much self-explanatory. We will see how it is gets extracted in kernel mode.

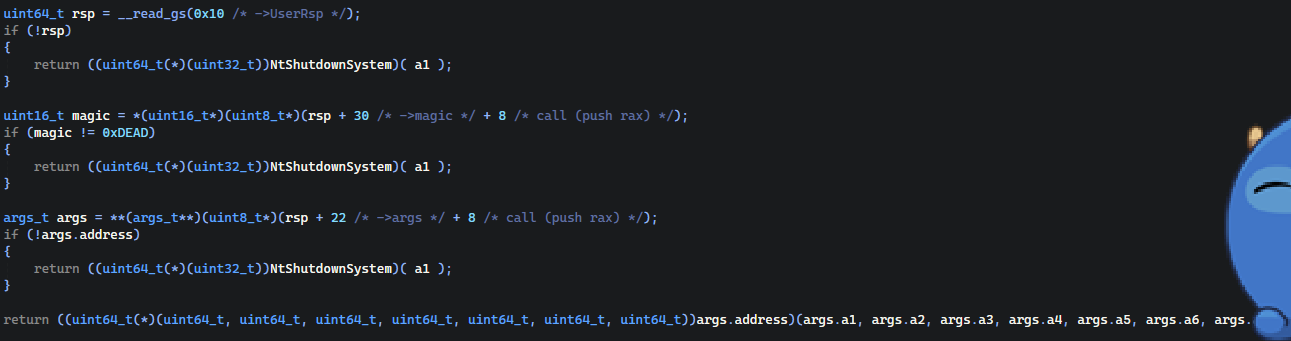

We are reading GS segment register of the CPU with offset that point to the ->UserRsp then we are getting the magic offset. Remember that we calling a call in usermode, call pushes 8 bytes for storing RAX on stack so we need to add it too. Then we are getting our hidden argument from RSP that is an pointer to the structure and in the end, we are executing our payload.

Overall the question arises, is it really something useful? In my opinion, nope but I found it interesting. Anyways I think if someone will look deep into that topic, they can find better way to do it. In the thread context we have some debug, exceptions fields, for example LastExceptionFromRip, we can simply overwrite it with our argument. And then in kernel mode gets this field in _KPCR->_KPRCB->_KPROCESSOR_STATE->_CONTEXT.

At the end in getting anything together we are getting this one tiny usage example of our backdoor with kernel functions execution.

Thank you for reading; I hope you learned something new!

The full bootkit code with usermode can be found on GitHub. Checkout the SubGetVariable project by ekknod on GitHub.
